If you appreciate fine machine accessories and the satisfaction you get when a tool performs just as expected year after year, then you'll appreciate these South Bend Precision Drill Press Vises. Each features sliding ball-stop handles, precision ground ways and hardened jaws. These vises are made for extremely accurate set ups and machining.

• Precision ground ways
• Hardened jaws have built-in step for thin stock
• Horizontal and vertical V-notch for round stock
• Low profile design maximizes drill press capacity
• Multiple table clamping options
• Extremely high quality fit and finish and typical quality that South Bend is known for

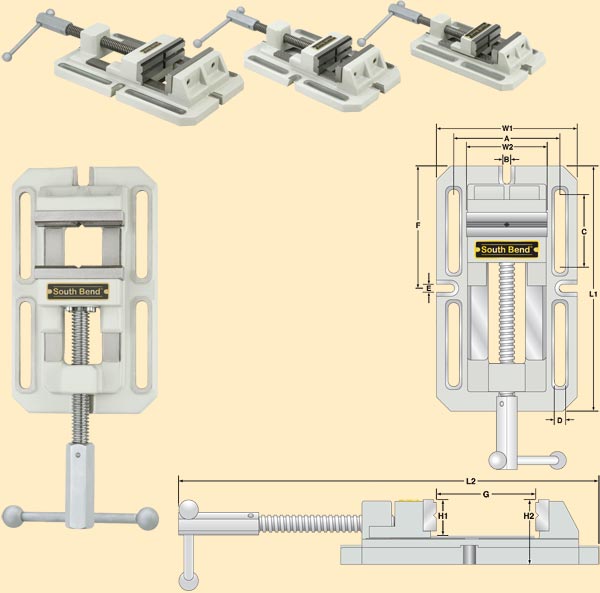

Imperial Measurements

Model#	W1	W2	L1	L2	H1	H2	A	B	C	D	E	F	G	Gross Weight
SB1215	6.75"	3.87"	11.44"	18.63"	1.59"	2.85"	5.37"	0.38"	3.44"	0.54"	n/a	n/a	4.38"	18.55 lbs.
SB1216	9.19"	5.48"	14.94"	24.06"	2.00"	3.46"	7.50"	0.58"	4.06"	0.56"	0.54"	7.47"	6.05"	34.10 lbs.
SB1217	11.56"	7.82"	19.35"	31.31"	2.43"	4.20"	9.87"	0.52"	6.40"	0.59"	0.54"	9.67"	8.37"	75.20 lbs.

Metric Measurements (in mm)

Model#	W1	W2	L1	L2	H1	H2	A	B	C	D	E	F	G	Gross Weight
SB1215	171.4	98.3	290.6	473.2	40.4	72.4	136.4	9.6	87.4	13.7	n/a	n/a	111.3	8.4 kg.
SB1216	233.4	139.2	379.5	611.1	50.8	87.9	190.5	14.7	103.1	14.2	13.7	189.7	153.7	15.5 kg.
SB1217	293.6	198.6	491.5	795.3	61.7	106.7	250.7	13.2	162.6	15.0	13.7	245.7	212.6	34.0 kg.
