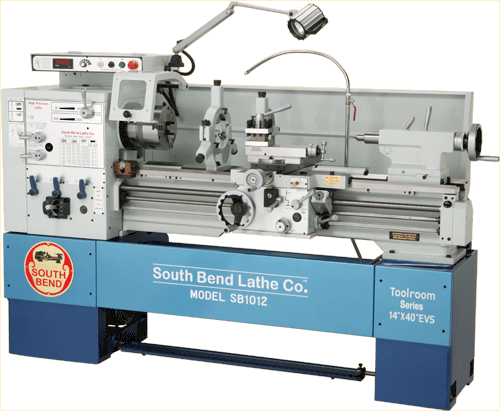

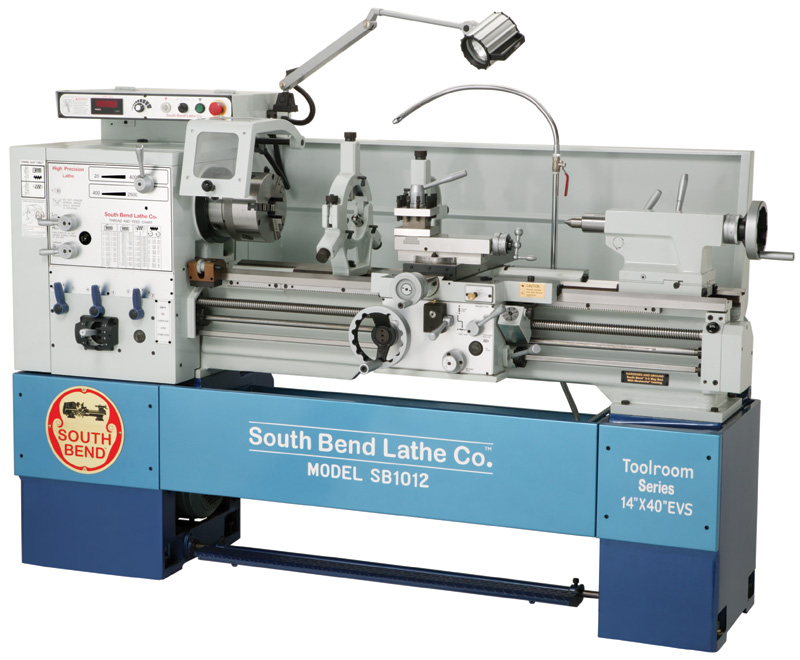

Specifications:
- Swing over bed: 14.17"
- Distance between centers: 40"
- Swing over cross slide: 8.375"
- Swing over gap: 20.98"
- Spindle nose to gap (max.): 6.5"
- Cross slide travel: 9"
- Compound slide travel: 5.1"
- Width of bed: 10.24"
- Spindle nose: D1-6 camlock
- Spindle bore: 2.0625"
- Spindle taper: MT#6
- Spindle speeds: Variable from 20 to 2500 RPM

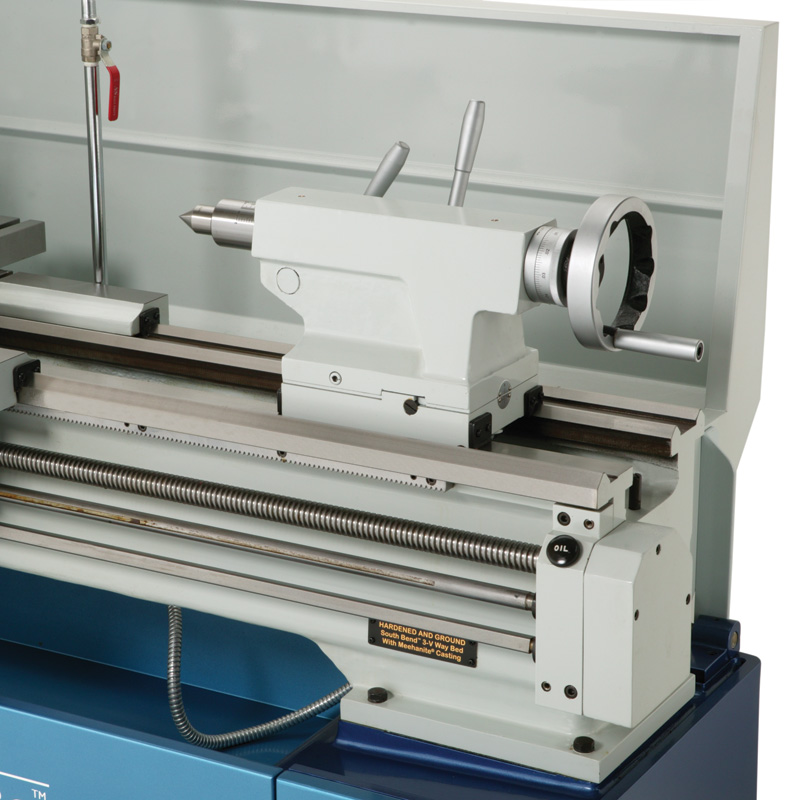

- Tailstock taper: MT#4
- Tailstock travel: 5"
- Tailstock quill diameter: 2.125"
- Inch thread range: 2 to 72 TPI (45 changes)
- Metric thread range: 0.2 to 14 mm (39 changes)
- Modular threads: 0.3 to 3.5 (18 changes)
- Diametral threads: 8 to 44 (21 changes)
- Longitudinal feed range: 0.002 to 0.067 IPR
- Cross feed range: 0.001 to 0.034 IPR
- Number of feed selections: 45
- Coolant motor size: 1/8 HP

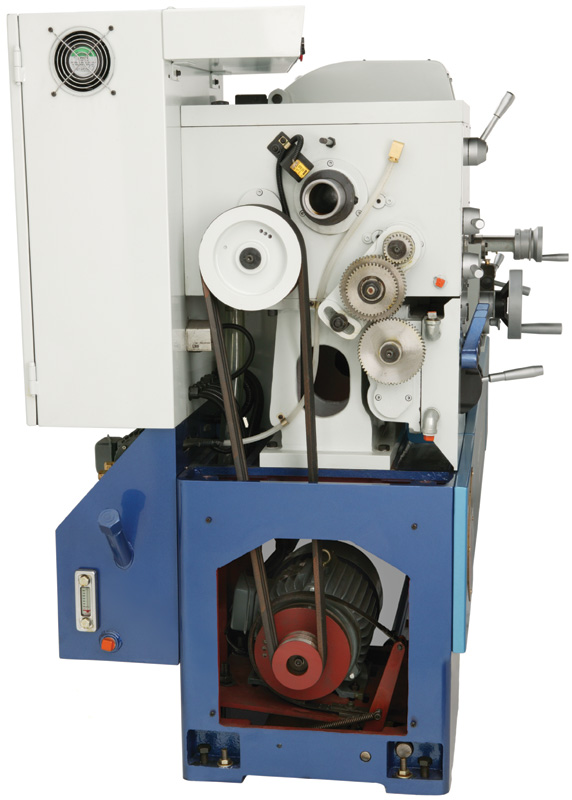

- Spindle motor size: 5 HP
- SB1012 voltage: 220V, 3-phase, 60 cycle
- SB1013 voltage: 440V, 3-phase, 60 cycle
- Machine footprint: 55" x 91"
- Approximate shipping weight: 3500 lbs.
Note: Only difference between SB1012 and SB1013 is the voltage.

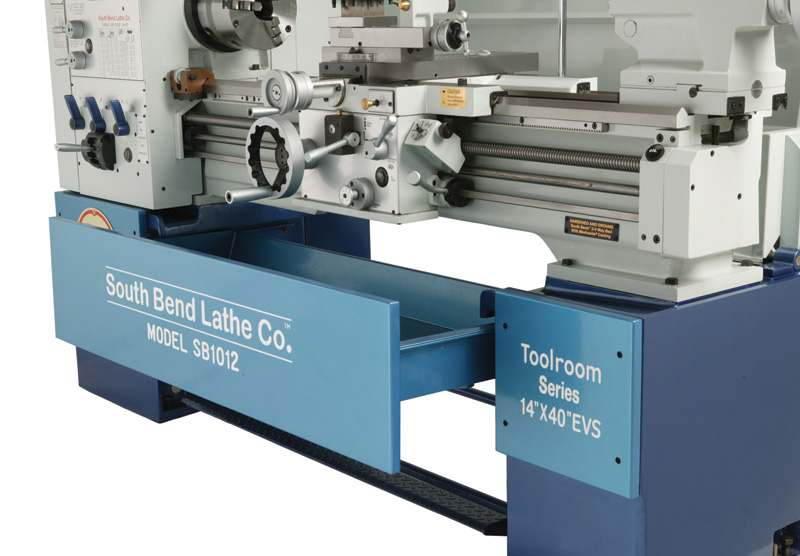

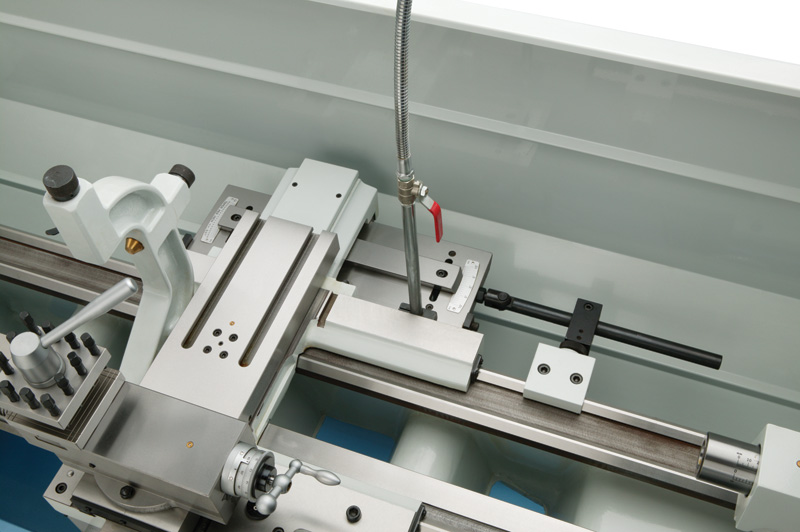

These South Bend EVS lathes are supplied with an adjustable feed rod clutch and stop collar on the feed rod. This is a great safety feature when working close to the chuck. Set the stop collar so the saddle and tool post are positioned at a safe distance from the chuck and tighten the lock screw. Adjust the feed rod clutch to a low setting. If the carriage comes into contact with the collar, the clutch slips, saving your machine from a serious crash.
|
Standard Equipment:
- Allen Bradley electrical components
- Meehanite casting, signature South Bend 3 V-bed
- 8" 3 jaw scroll chuck w/ D1-6 plate
- 10" 4 jaw ind. chuck D1-6
- 12" faceplate
- Safety chuck guard with microswitch shut-off
- Steady rest with roller tips
- Follow rest
- 4-way tool post
- Halogen lamp
- Complete coolant system
- Micrometer carriage stop
- Spindle sleeve MT#6/MT#4
- Two MT#4 Dead centers
- Threading dial indicator
- Leveling pads - 8 pcs.
- NSK or NTN Japanese spindle bearings
- Full length splash guard
- Front removable sliding chip tray
- Tool set and box
- Operation manual and parts list

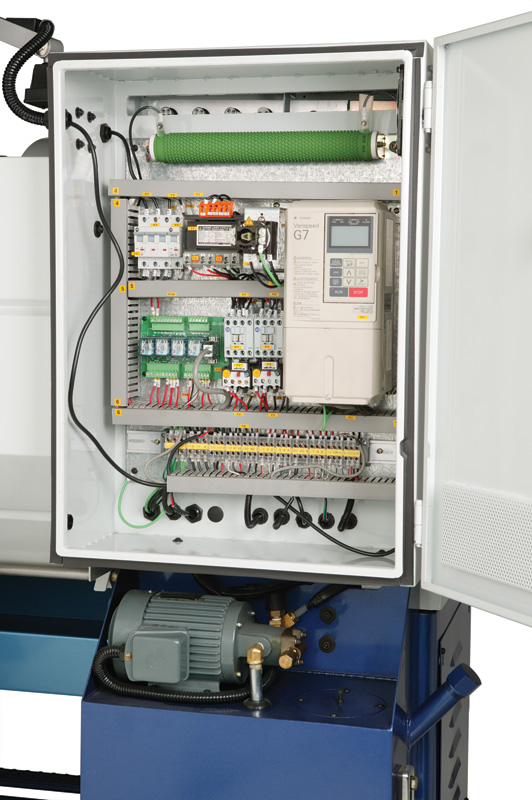

- Yaskawa G7A23P7 inverter
Optional Accessories:
- Taper attachment (unmounted)
- Collet attachment 5-C, quick change (unmounted) Model SB1268
- Backplate
- Quick change tool post system (see Tooling section)
- Precision 5-C collets - set of 8 (1/8" - 1", in 1/8" increments) Model SB1279
- Precision 5-C collets - set of 15 (1/8" - 1", in 1/16" increments) Model
SB1280
- Quick change tool post system (see Tooling section)
- 5C collets
- Drill chucks
|
