Specifications:
- Swing over bed: 18.1"
- Distance between centers: 60"
- Swing over cross slide: 11"
- Swing over gap: 27.95"
- Width of bed: 13.58"
- Spindle nose to gap: 11.5"

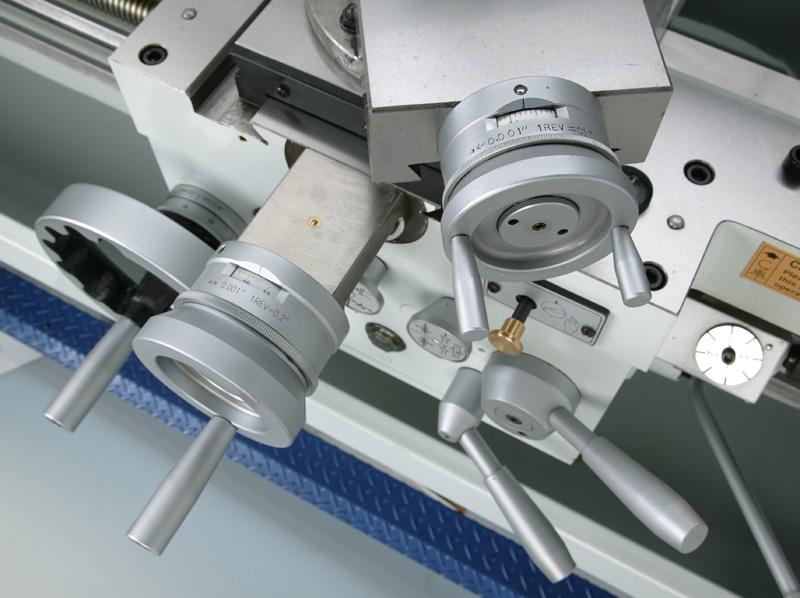

- Cross slide travel: 11"
- Compound slide travel: 11"
- Spindle nose: D1-8 camlock
- Spindle bore: 3.1"
- Spindle taper: MT#7
- Spindle speeds: Variable (EVS) 18-1800 RPM

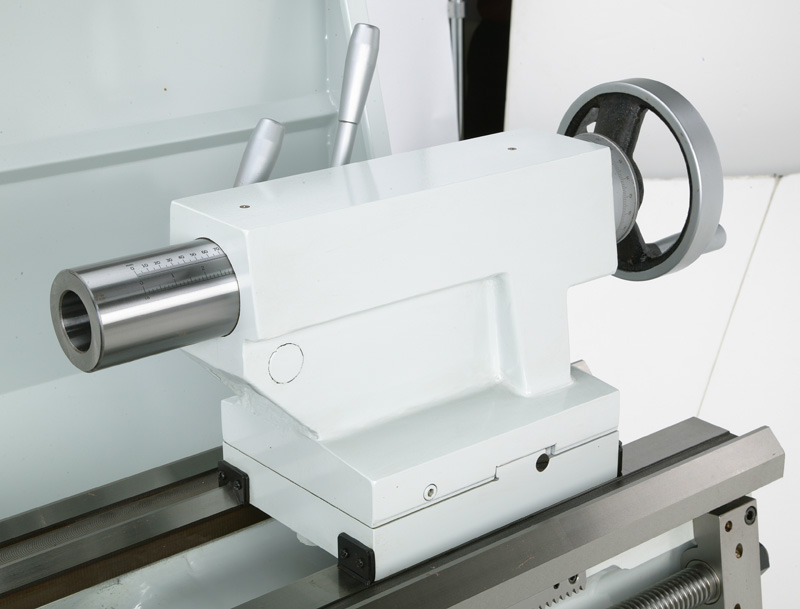

- Tailstock taper: MT#5
- Tailstock travel: 7"
- Tailstock quill diameter: 3"

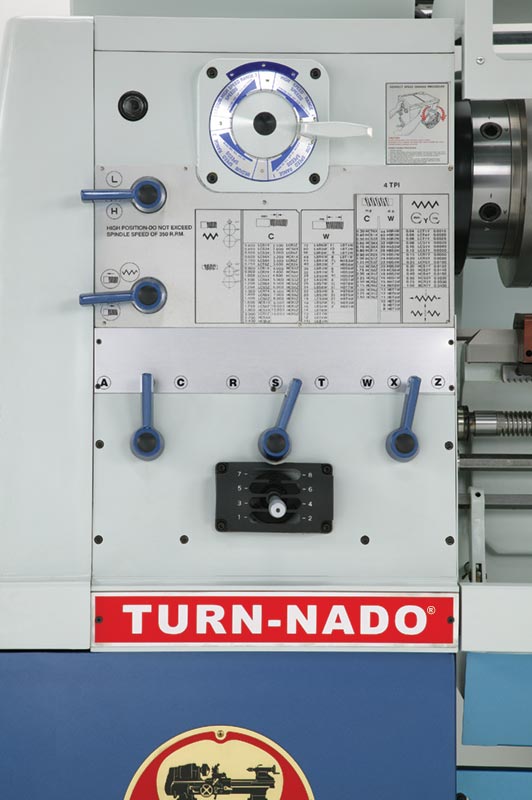

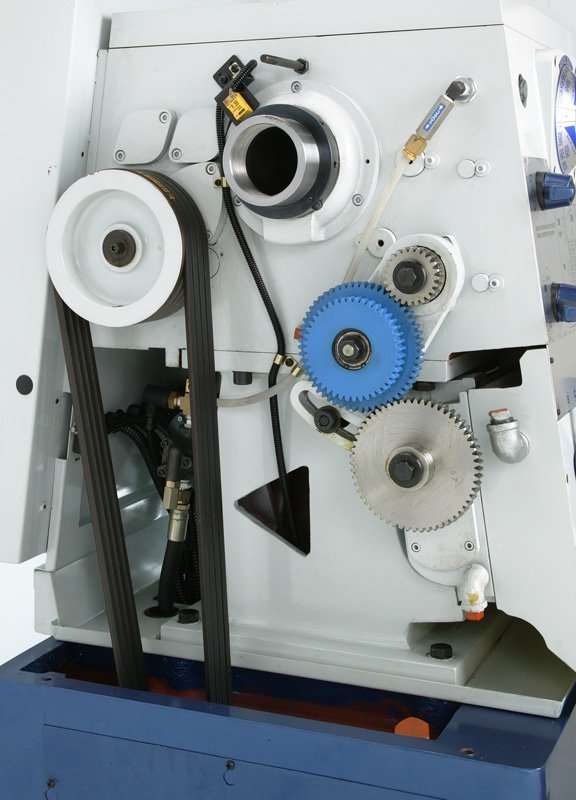

- Inch thread range: 2 to 72 TPI (38 changes)
- Metric thread range: 0.4 to 14mm (40 changes)
- Modular threads: 0.3 to 3.5 (18 changes)
- Diametral threads: 8 to 44 (21 changes)

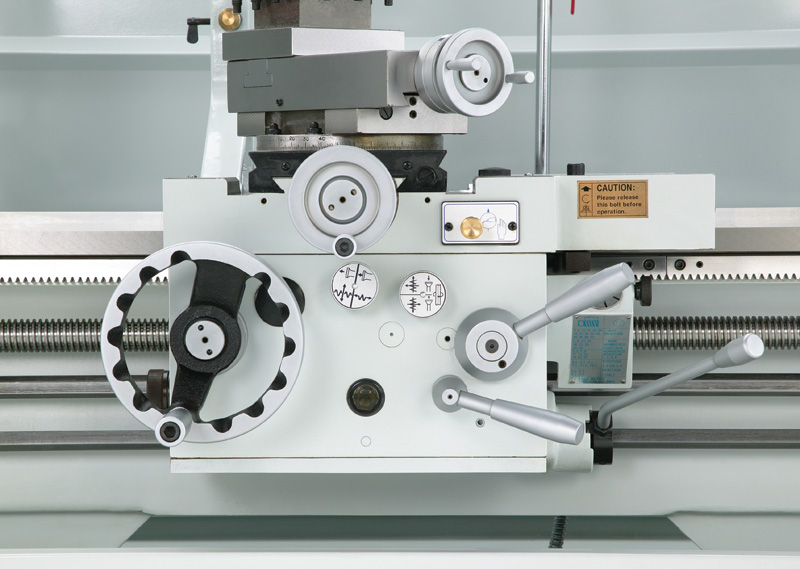

- Longitudinal feed range: 0.0015 to 0.040 IPR
- Cross feed range: 0.0075 to 0.020 IPR
- Number of feed selections: 40
- Coolant motor size: 1/8 HP

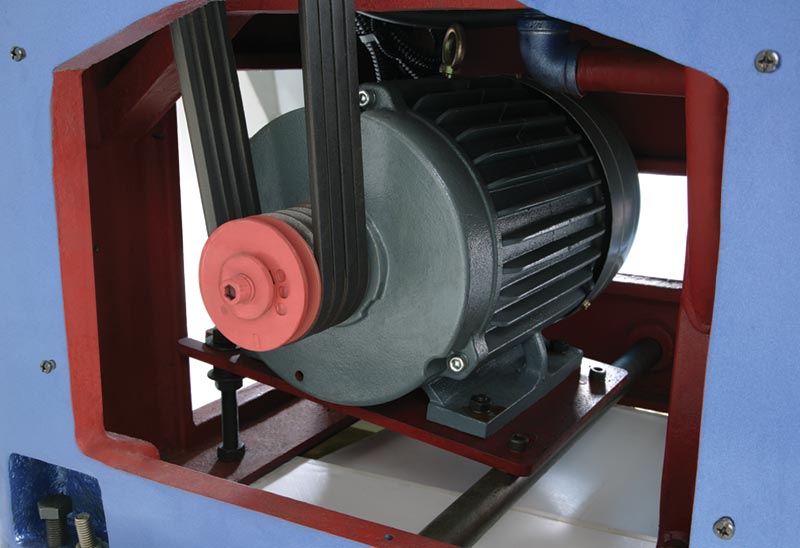

- Spindle motor size: 10 HP

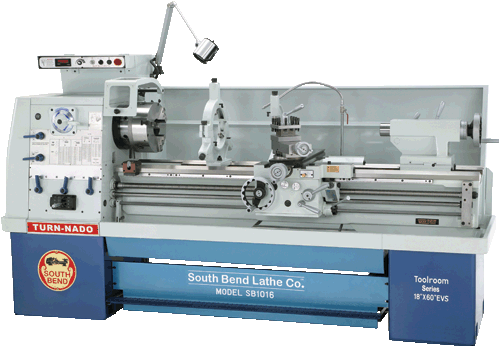

- SB1016 voltage: 220V, 3-phase, 60 cycle

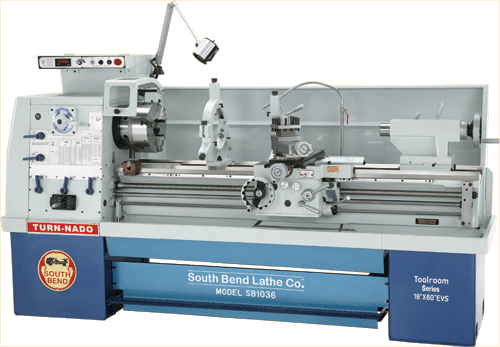

- SB1036 voltage: 440V, 3-phase, 60 cycle
- Machine footprint: 65" x 118"
- Approximate shipping weight: 6500 lbs.
Note: Only difference between SB1016 and SB1036 is the voltage.
|
Standard Equipment:
- Allen-Bradley® electrical components
- Meehanite casting, signature South Bend 3 V-bed

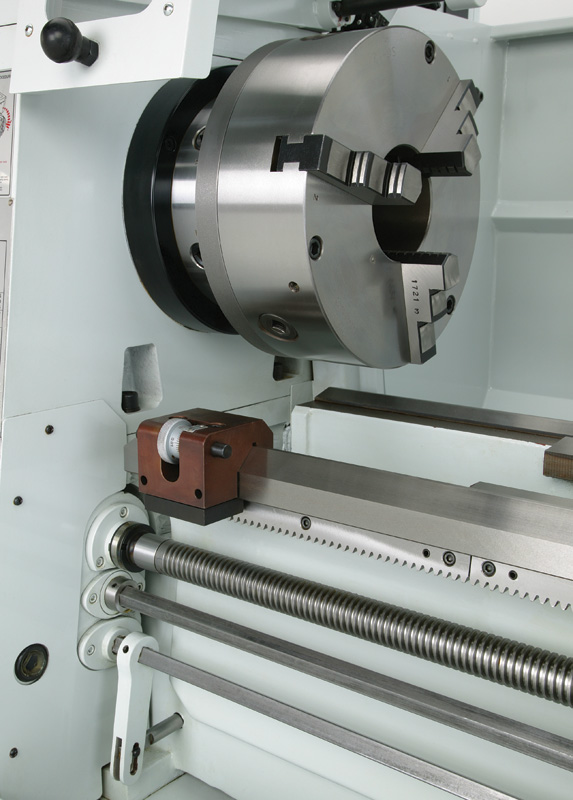

- 12" 3 jaw scroll chuck w/ D1-8 back plate
- 14" 4 jaw ind. chuck D1-8
- 14" faceplate D1-8
- Safety chuck guard with microswitch shut-off

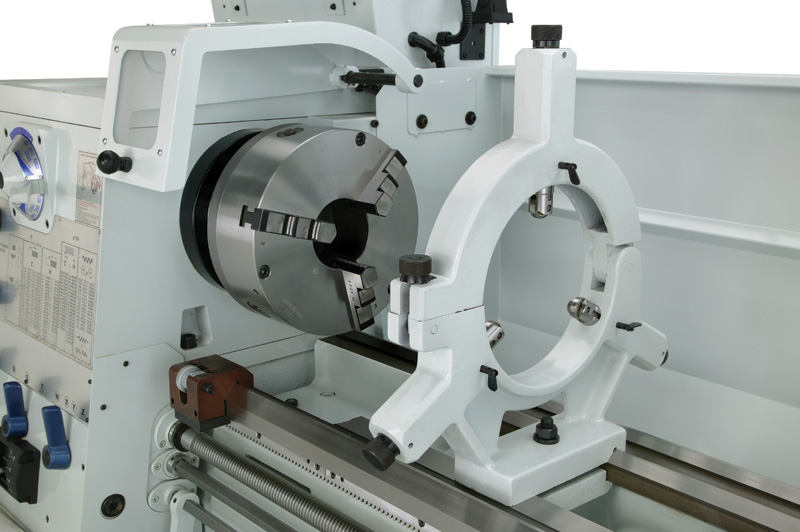

- Steady rest with roller tips
- Follow rest

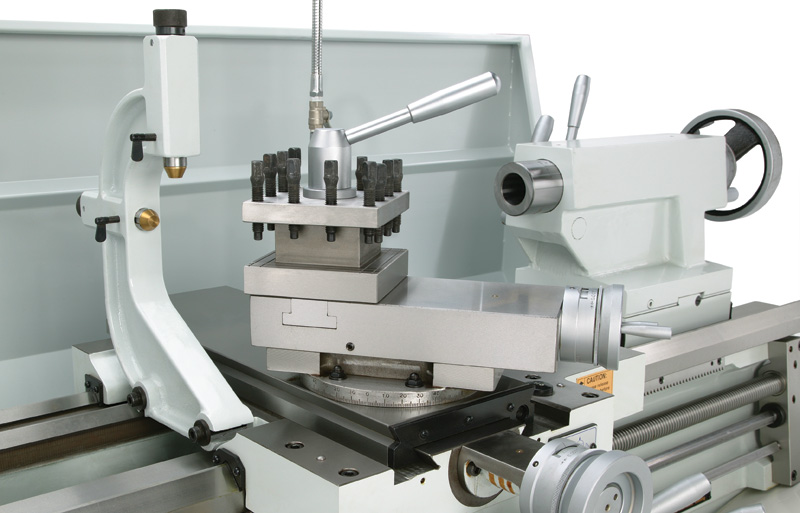

- 4 way tool post
- Halogen lamp
- Complete coolant system
- Micrometer carriage stop
- Spindle sleeve MT#7/MT#5
- Two MT#5 dead centers
- Threading dial indicator
- Leveling pads - 8
- FAG or SKF German spindle bearings
- Full length splash guard
- Front removable sliding chip tray
- Tool set and box
- Operation manual and parts list

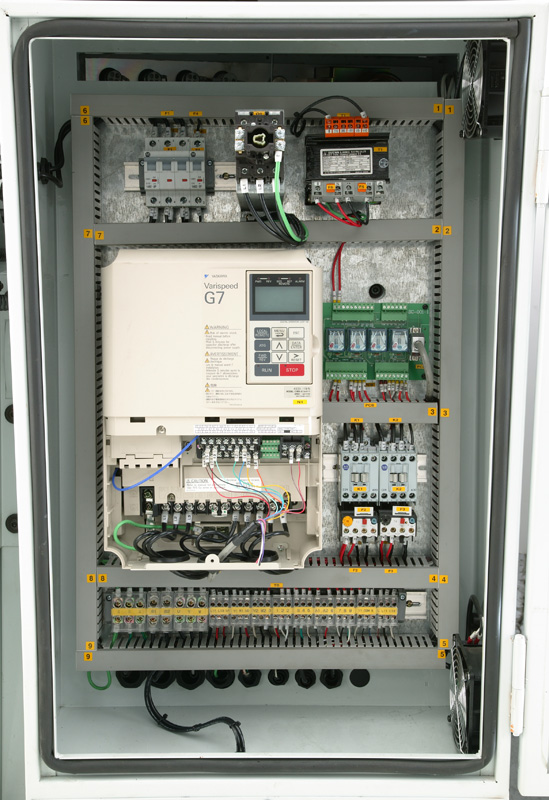

- Yaskawa G7A4011 inverter
Optional Accessories:
- Taper attachment (unmounted) Model SB1271
- Collet attachment 5-C, quick change (unmounted) Model SB1272
- 12" back plate D1-8
- Quick change tool post system (see Tooling section)
- Live centers
- MT#5 live center, Hi-Performance Model SB1240
- Precision 5-C collets - set of 8 (1/8" - 1", in 1/8" increments) Model SB1279
- Precision 5-C collets - set of 15 (1/8" - 1", in 1/16" increments) Model SB1280
- 5-C collets
- Drill chucks
|
