Specifications:
- Table Size: 10" X 54"
- Longitudinal Travel: 35"
- Cross Travel: 16"
- Vertical (Knee) Travel: 14-1/4"
- Table T-Slots Size: (3) 5/8"
- Spindle Motor: 5 HP 3 Phase AEVF, 1725 RPM
- Motor Voltage: Machine Prewired for 220V / 1 PH / 60 Hz, but can also be converted to 3-phase
- Spindle Taper: R8
- Spindle Speeds: 60 - 5000 RPM (Variable Speed)
- Spindle Nose to Table: 2-1/2" - 16-1/2"
- Spindle Centerline to Column Surface: 6-1/2" X 26"
- Quill Travel: 5"
- Automatic Vertical Feeds (per revolution): 0.0015", 0.003", 0.006"

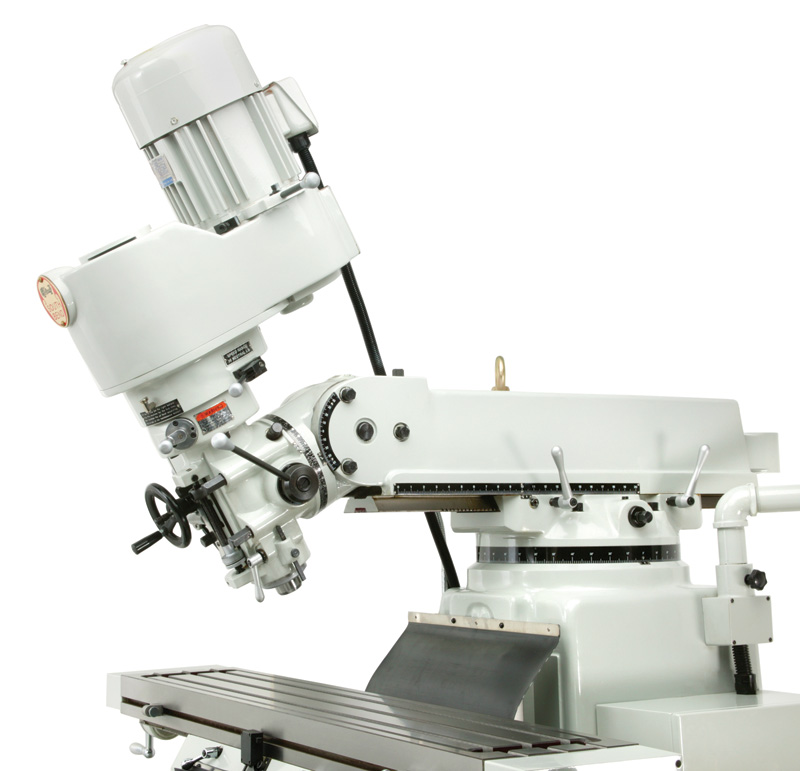

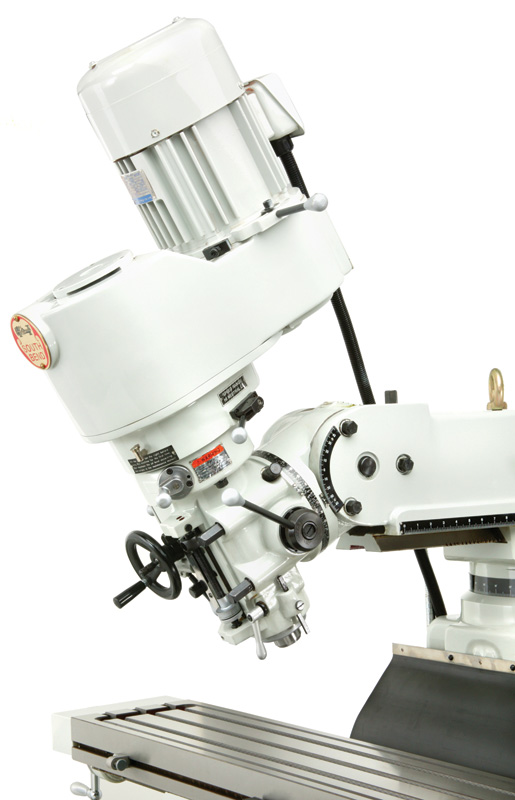

- Head Swivel: (L & R) 90° / 90° & (F & R) 45° / 45°
- Ram Travel (In/Out): 19-1/2"
- Column Swivel: 360°
- Approximate Shipping Weight: 3,350 lbs.
- Net Machine Weight: 3,000 lbs.
- Floor Space (L X W X H) Inch: 66"D X 77"W X 89"H
|
Features:

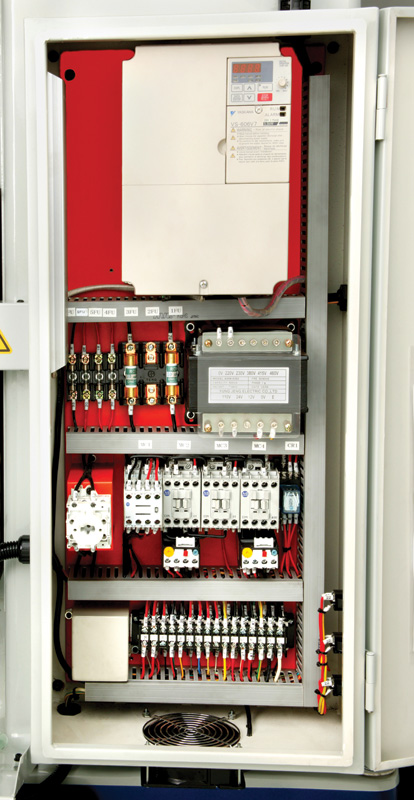

- Allen-Bradley Electronic Components
- High-Quality, Low-Vibration AEVF Spindle Motor
- Built-In Single-Phase to 3-Phase Yasakawa Power Inverter
- P4 (ABEC-7) High-Quality Angular Contact Spindle Bearings
- X & Y Leadscrew Nuts Double-Bronzed for Ultra-Smooth Movement w/ Minimal Backlash
- Lever-Action One-Shot Pump Way Lubrication System

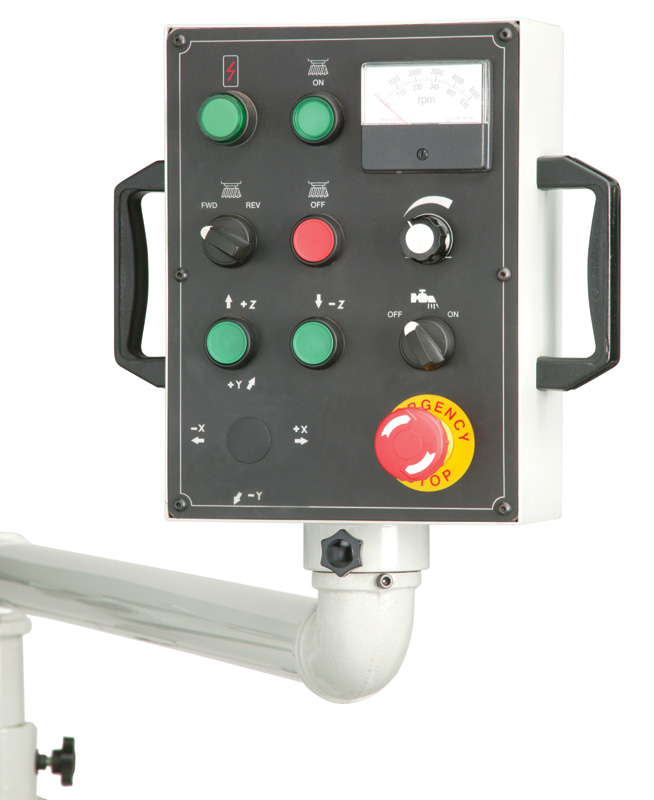

- Control Panel Mounted on Adjustable Arm
- Complete Built-In Coolant System
- Table Elevation Power Feed (Z-Axis)
- Variable Speed Longitudinal Power Feed (X-Axis)
- Auto-Downfeed with Micro-Adjustable Stop
- Hardened and Precision-Ground Table Surface
- Chromed Steel Quill
- Heavy-Duty Spindle Brake
Standard Equipment:
- Yaskawa 5.5 Kw / 220V inverter
- Longitudinal table power feed with rapid override
- One shot lubrication
- Flood coolant system
- Chip pan for base
- Toolbox and operational manual
- Work light
- Each machine fully crated individually
