Specifications:
- Table Size: 9"X42"
- Longitudinal Travel: 27"
- Cross Travel: 13"
- Vertical (Knee) Travel: 16"
- Table T-Slots Size: (3) 5/8"
- Maximum Work Piece Weight: 750 lbs.
- Spindle Motor: 2 HP Three Phase
- Motor Voltage: 220V / 440V /60 Hz, Prewired to 220V
- Spindle Taper: R8
- Spindle Speeds: 90-5600 RPM (16 Steps)
- Spindle Nose to Taper: 2-3/4" - 18-3/4"
- Spindle Centerline to Column Surface: 7-1/4" X 19-3/4"
- Quill Travel: 5"
- Automatic Vertical feeds (per revolution): 0.0015", 0.003", 0.006"

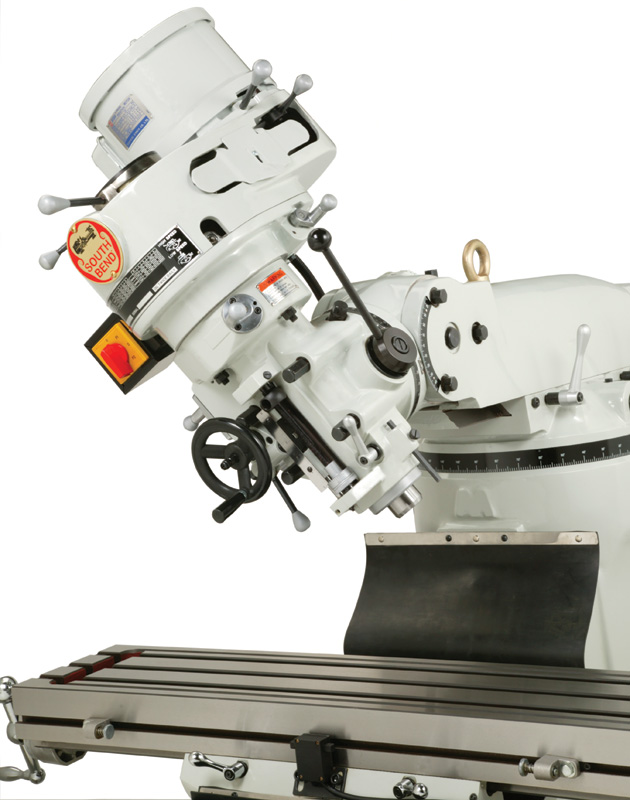

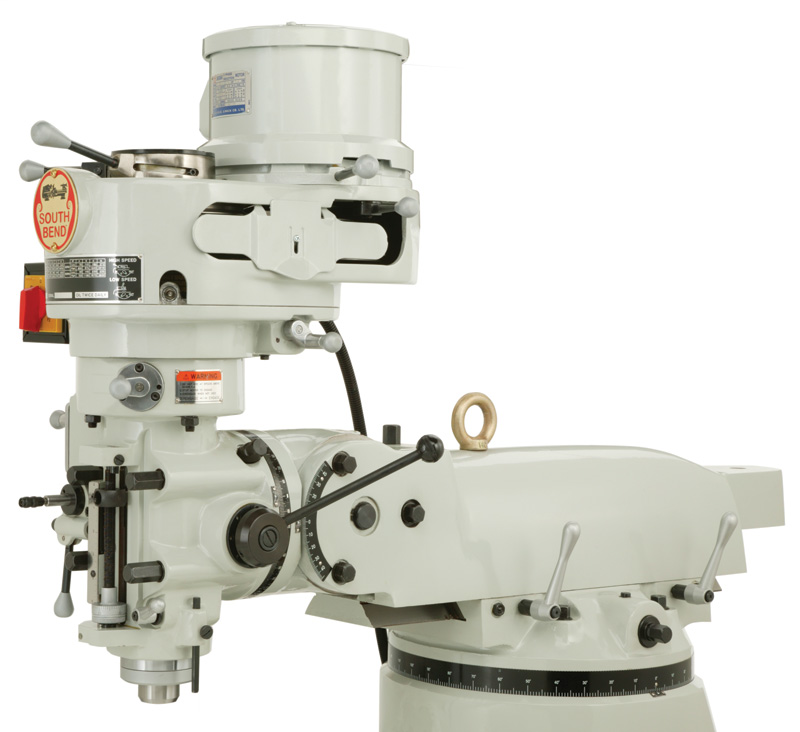

- Head Swivel: (L & R) 90° / 90° & (F & R) 45° / 45°
- Over Arm Travel (In/Out): 12"
- Over Arm Swivel: 360°
- Approximate Shipping Weight: 2,100 lbs.
- Net Machine Weight: 1,924 lbs.
- Floor Space: 64"D X 81"W X 86-3/4"H
- Floor Space: 1625D X 2057W X 2203H (mm)
|
Features:
- Allen-Bradley controls
- Japanese NSK/NTN Bearings
- Table, knee and ram are equipped with dual locking mechanisms
- balanced polyvee and spindle bearings for smooth quiet and precise operation
- Turcite coated ways
- Each machine comes with its own test chart
- South Bend brass nameplate
- Meehanite castings
- Built-in typical South Bend "no compromises"fashion
Standard Equipment:
- Longitudinal table power feed with rapid override
- One shot lubrication
- Toolbox and operational manual
- Work light
- Each machine fully crated individually
