Specifications:
- Table Size: 9" X 48"
- Longitudinal Travel: 30"
- Cross TableTravel: 12"
- Vertical (Knee) Travel: 16"
- Table T-Slots Size: (3) 5/8"W x 1"H
- Maximum Work Piece Weight: 550 lbs.
- Spindle Motor: 3 HP, 3-Phase
- Motor Voltage: 220V, 60 Hz, 8.5A
- Spindle Taper: R8
- Spindle Speeds: 60-5000 RPM (16 Steps)
- Spindle Nose to Table: 0" - 18"
- Spindle Centerline to Column Surface: 6" X 19"

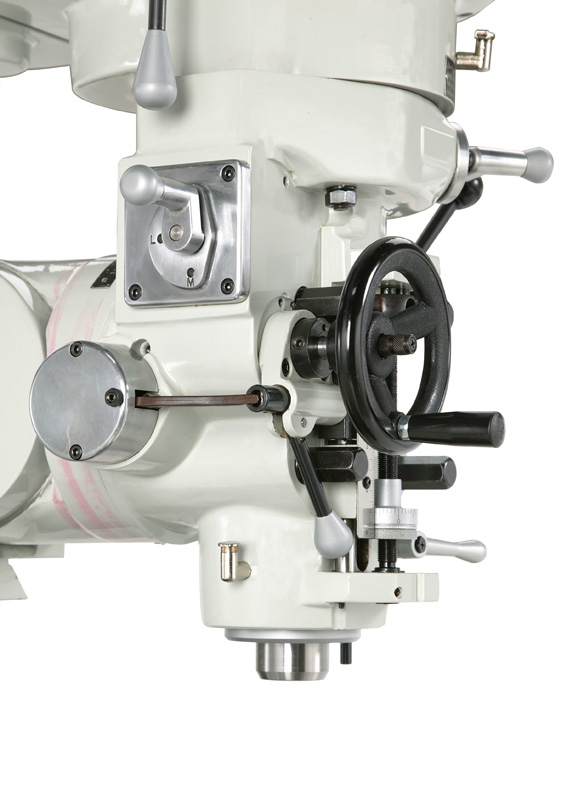

- Quill Travel: 5"
- Quill Diameter: 3-3/8"
- Quill Auto-Feed Rates: 0.0015", 0.003", 0.006" in./rev.
- Head Tilt: 45° Forward, 45° Back
- Head Swivel: 90° Left, 90° Right
- Ram Travel: 13"
- Ram Swivel: 180°
- Approximate Shipping Weight: 2,420 lbs.
- Net Machine Weight: 2,156 lbs.
- Floor Space: 57"L X 71"W X 87-1/2"H
- Foot Print: 36"L X 24"W
|
Features:

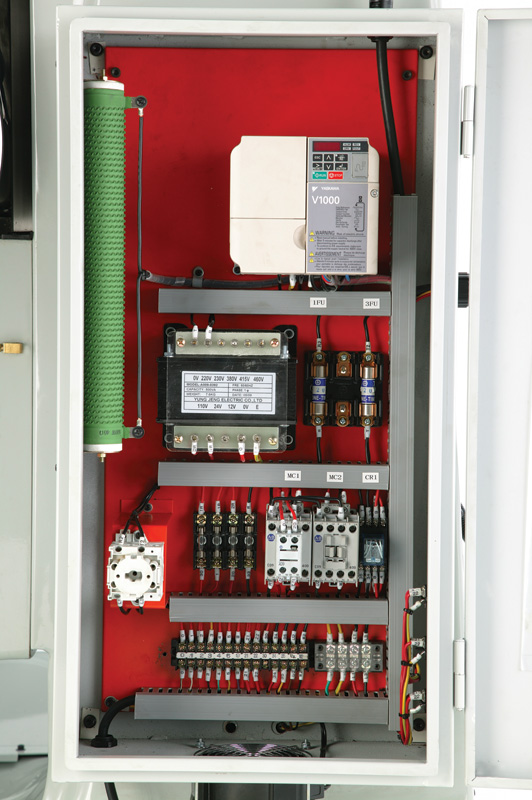

- Allen-Bradley controls
- Japanese NSK/NTN Bearings
- Table, knee and ram are equipped with dual locking mechanisms
- balanced polyvee and spindle bearings for smooth quiet and precise operation
- Turcite coated ways
- Each machine comes with its own test chart
- South Bend brass nameplate
- Meehanite castings
- Built-in typical South Bend "no compromises"fashion
Standard Equipment:
- Longitudinal table power feed with rapid override

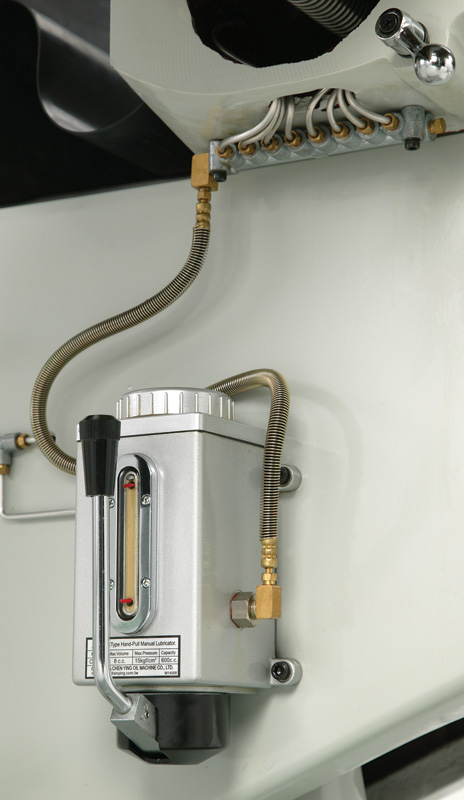

- One shot lubrication
- Toolbox and operational manual
- Work light
- Each machine fully crated individually
Optional Equipment:
|
